Small IC Pneumatic

0 - 6000 lb Load Capacity

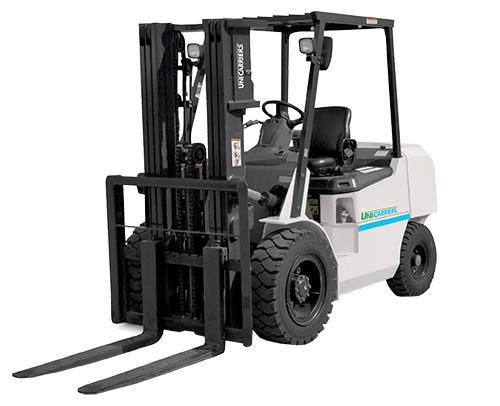

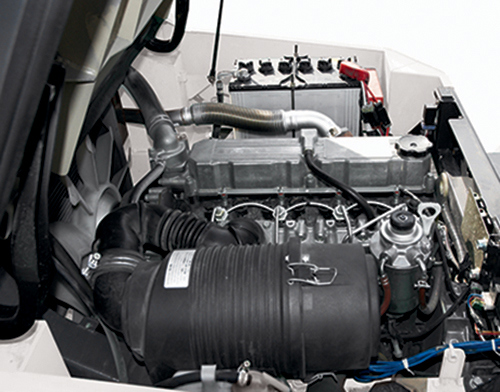

Equipped with a GK25 engine in its gas/LP configuration and diesel configuration in the S4S, this family of trucks can perform at optimal levels in some of the most demanding applications and environments.

Features

Specifications

Model Capacity (lb) Height 2 Voltage Length Width (in) Height (in) 1 Weight (lb) 1
Model LiftMaster FD20T5C Capacity (lb) 4,000 Height 2 118 Voltage Diesel Length 99.4 Width (in) 45.3 Height (in) 1 81.7 Weight (lb) 1 7,430
Model LiftMaster FD25T5C Capacity (lb) 5,000 Height 2 118 Voltage Diesel Length 100.8 Width (in) 45.3 Height (in) 1 81.7 Weight (lb) 1 8,050
Model LiftMaster FD30T5C Capacity (lb) 6,000 Height 2 118 Voltage Diesel Length 105.9 Width (in) 50.2 Height (in) 1 82.5 Weight (lb) 1 9,460
Model LiftMaster FG20T5C Capacity (lb) 4,000 Height 2 118 Voltage Gas/LP Length 99.4 Width (in) 45.3 Height (in) 1 81.7 Weight (lb) 1 7,190
Model LiftMaster FG25T5C Capacity (lb) 5,000 Height 2 118 Voltage LP Gas Length 100.8 Width (in) 45.3 Height (in) 1 81.7 Weight (lb) 1 7,830
Model LiftMaster FG30T5C Capacity (lb) 6,000 Height 2 118 Voltage GLP Length 105.9 Width (in) 50.2 Height (in) 1 82.5 Weight (lb) 1 9,240
Show All

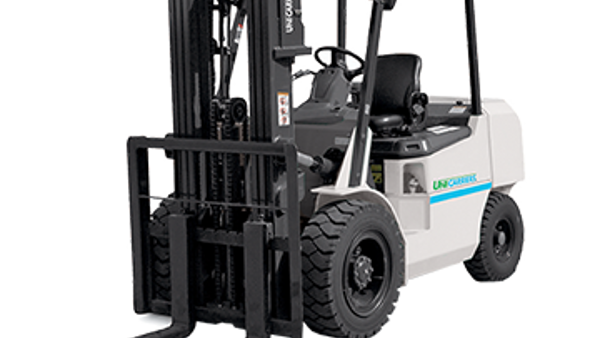

unicarriers dalian side 360x300

T5C Series FG20T5C-FG30T5C Product Brochure - English

T5C Series FG20T5C-FG30T5C Class V Pneumatic

Download
unicarriers dalian side 360x300

T5C Series FG20T5C-FG30T5C Product Brochure - Spanish

T5C Series FG20T5C-FG30T5C Class V Pneumatic

Download
Notes

Schedule a Demo

Small IC Pneumatic
0 - 6000 lb Load Capacity
FG20T5C-FG30T5C
